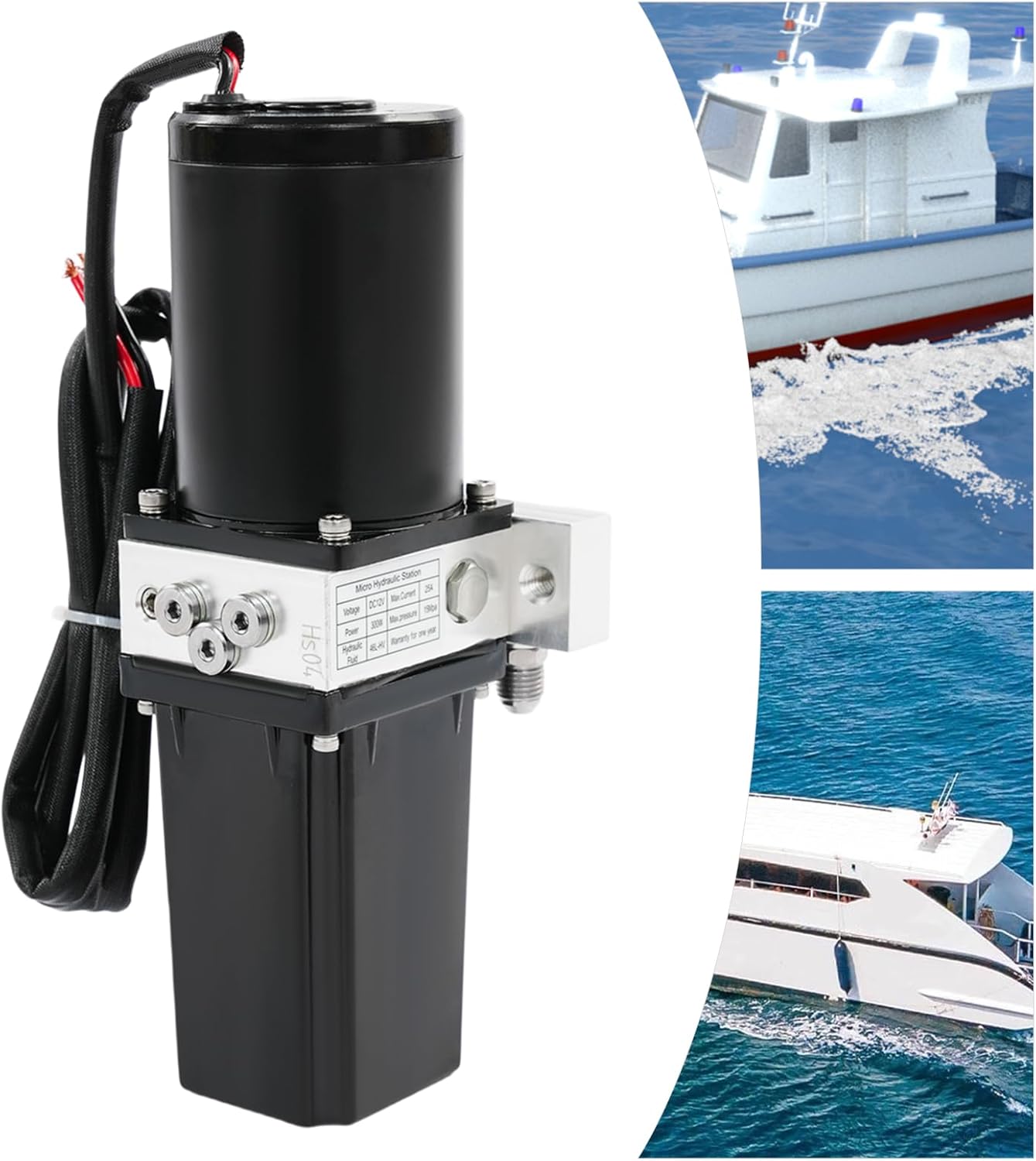

12V DC 300W Motor Reservoir Pump, 2800RPM Bidirectional Gear Pump, Adjustable Pressure for Driving Outboard Motor Hoists, Rdder Mechanisms, Hydraulic Equipment

SpecificationsColor: BlackMaterial: Iron, AluminiumProcess: Plastic SprayingStyle: Modern Voltage: DC 12VPower: 300WMotor Type: DC MotorRotational Speed: 2800 RPMHydraulic Oil: 46L-HVMaximum Current: 25AMaximum Pressure: 15MPaOil Tank Capacity: 350ml/11.83OZFlow Rate: 9ml/0.3oz/sOil Pump Type: Bidirectional Gear PumpOperating Temperature: -20°C~60°C/-4°-140°FUsage Frequency: 4 Minutes Each Time (For Prolonged Continuous Operation)Protection Rating: IPX6Mounting Hole Specifications: M10*1Thread Specifications: M14*1.5Product Size: 12*12*26cm/4.72*4.72*10.24inPackage Size: 39.5*20*12cm/15.55*7.87*4.72inGross Weight: 3.5kg/7.72lbsNet Weight: 3.33kg/7.34lbsPackage Included1 X Motor Reservoir Pump1 X Fuel Funnel1 X English Manual

• 【Parameter】300W, DC 12V, 2800 RPM, DC Motor. 46L-HV Hydraulic Oil, Max 25A, Max 15MPa, 350ml Oil Tank 350ml, 9ml/0.3oz/s Flow Rate; Usage Frequency: 4 Minutes Each Time (For Prolonged Continuous Operation)
• 【Adjustable Pressure】Lifting pressure and retracting pressure are both adjustable via the adjusting plug. To operate, you must first unscrew the adjusting plug and then adjust the internal nut - tightening the nut increases the lifting or retracting pressure, whereas loosening it reduces that pressure.
• 【High Safety】Equipped with integrated overcurrent, overload, and thermal protection mechanisms, bidirectional self-locking structure for the hydraulic cylinder. In the event of an unexpected incident, loosening the safety valve enables the ejector rod to retract automatically under the action of the load force, ensure safe operation.
• 【Easy to Use】Just need to connect this Motor Reservoir Pump with the oil pipe (not included) and 12V DC power supply(not included), and then you can operate it with the controllers(not included), without other hydraulic units. When you take out the fuel plug, it lets you add fuel to the tank easily
• 【Application】Commonly employed to drive various hydraulic equipment, such as outboard motor hoists, rudder mechanisms, and deck machinery. Widely used in lifting platforms, small handling forklifts, hydraulic manhole covers, operating beds, basement doors, tricycles, robots, container doors, and other facilities.
