4-Ch RS485 to RJ45 Ethernet with POE Serial Server Adapter Industrial Isolated Serial Module, 4-CH Independent RS485, Support Modbus Gateway/MQTT/JSON, Bi-Directional Transparent Transmission

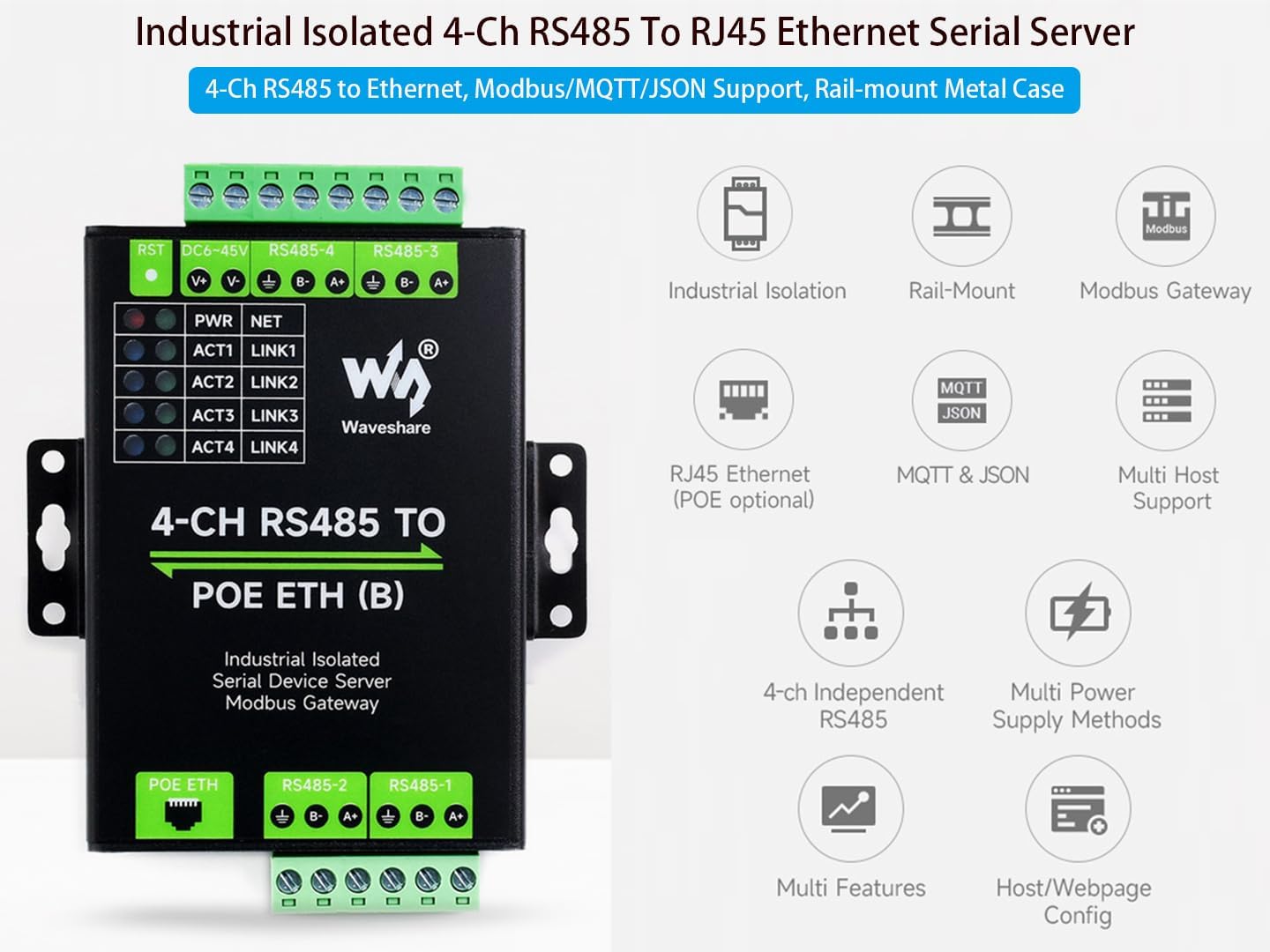

Overview This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port with POE , small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios. Specifications 1. Basic Introduction Product Type: Serial server, Modbus Gateway, MQTT Gateway Basic Function: Bi-directional transparent data transmission between RS485 and Ethernet Communication interface: RS485 port x 4, Ethernet port x 1 Power supply: DC 6 ~ 45V screw terminal, or PoE port Isolation Protection: Power isolation, Signal isolation 2. Communication Ethernet: RJ45 with PoE support, IEEE 802.3af compliant, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection Serial port: Isolated RS485 (the 4 channels can receive and transmit independently at the same time) 3. Serial specification Baudrate: 300 ~ 115200 bps Parity bit: none, odd, even, mark, space Data bit: 5 ~ 9 bits 4. Software Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS Configuration: host, web browser, device management functions library Communication method: TCP/IP direct communication, VCOM Operating mode: TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast 5. Others Operating temperature : -40℃ ~ 85℃ Humidity range: 5% ~ 95% relative humidity Dimensions: L × W × H: 91.0 × 64.5 × 24.2 mm Online Development Resources /User Manual : bit.ly/3NGN9Sb Package Content 4-CH RS485 TO POE ETH (B) x1 Rail-mount buckle x1 Screwdriver x1 Screws pack x1

• This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port with POE, small in size, easy to install, and cost-effective. Bi-directional transparent data transmission between 4-Ch RS485 and Ethernet. 4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission.

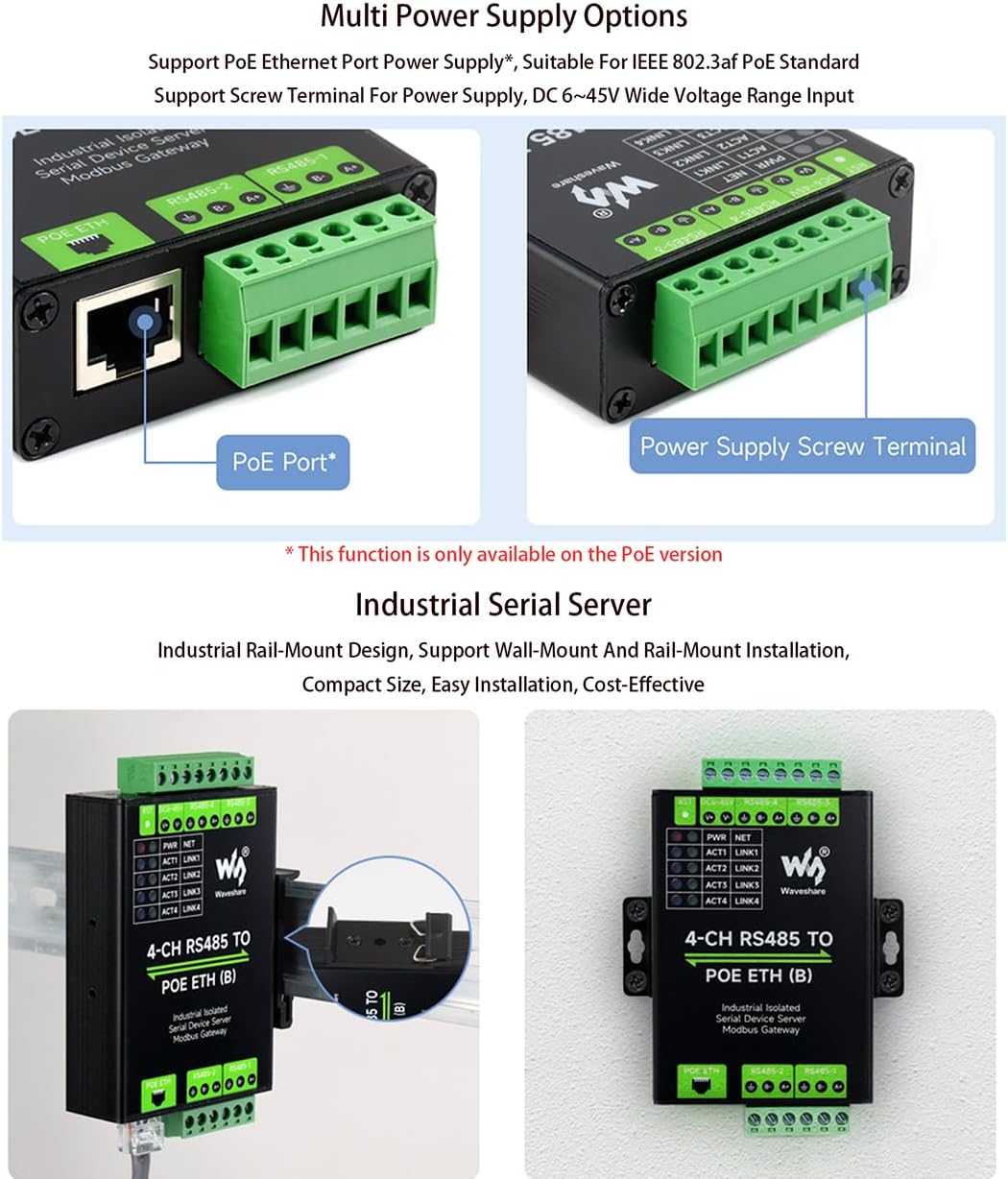

• Multi Power Supply Options--- Support PoE Ethernet port power supply, Suitable for IEEE 802.3af PoE standard. Support Screw Terminal for Power Supply, DC 6~45V Wide Voltage Range Input .

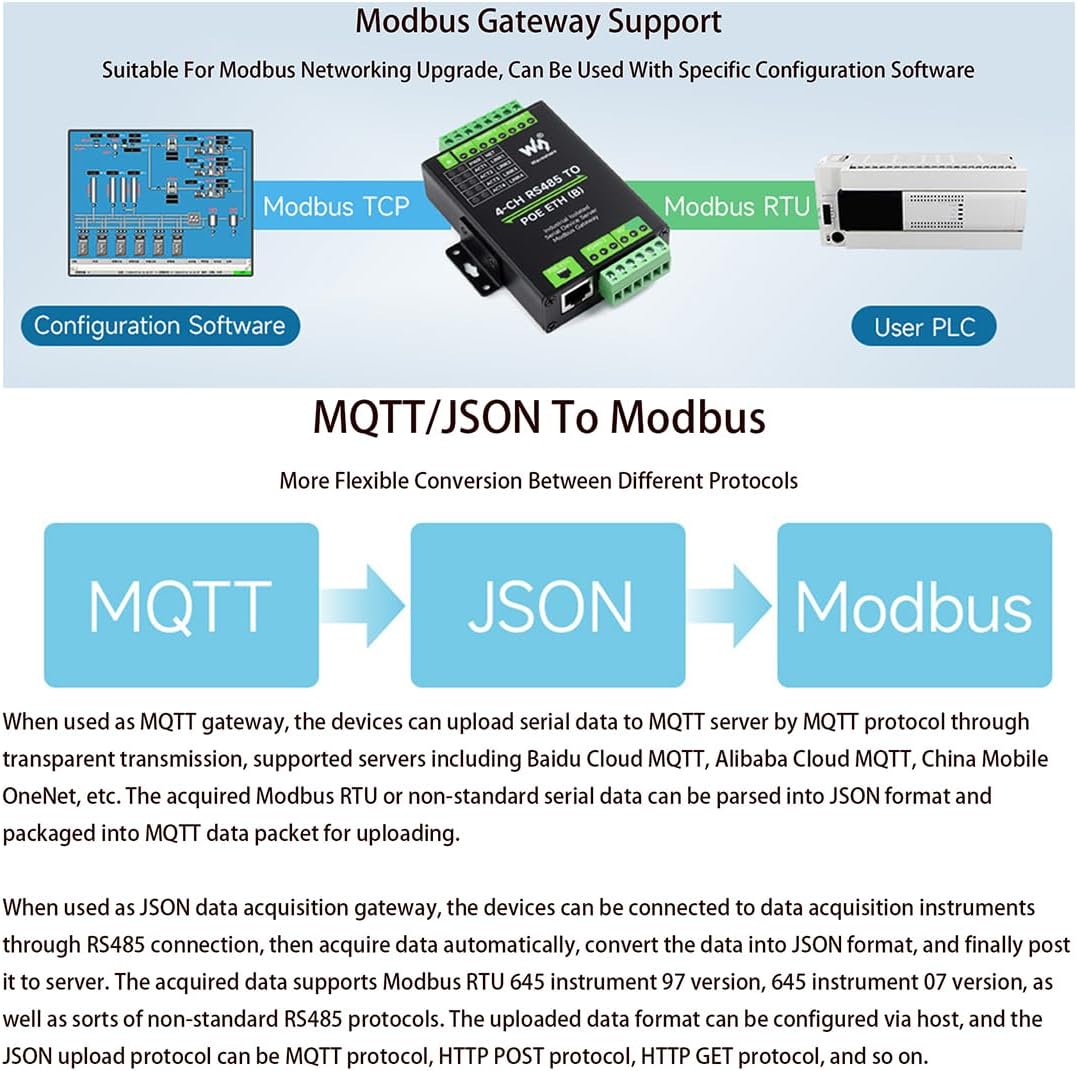

• Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc. Suitable for Modbus networking upgrade, can be used with specific configuration software.
• Multi hosts roll-polling Support---Different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices.
• Multi configuration methods--- Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
• Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection.
• Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance
