Baileigh 30-Inch Shear Brake Roll, 20-Gauge Mild Steel (Model SBR-3020)

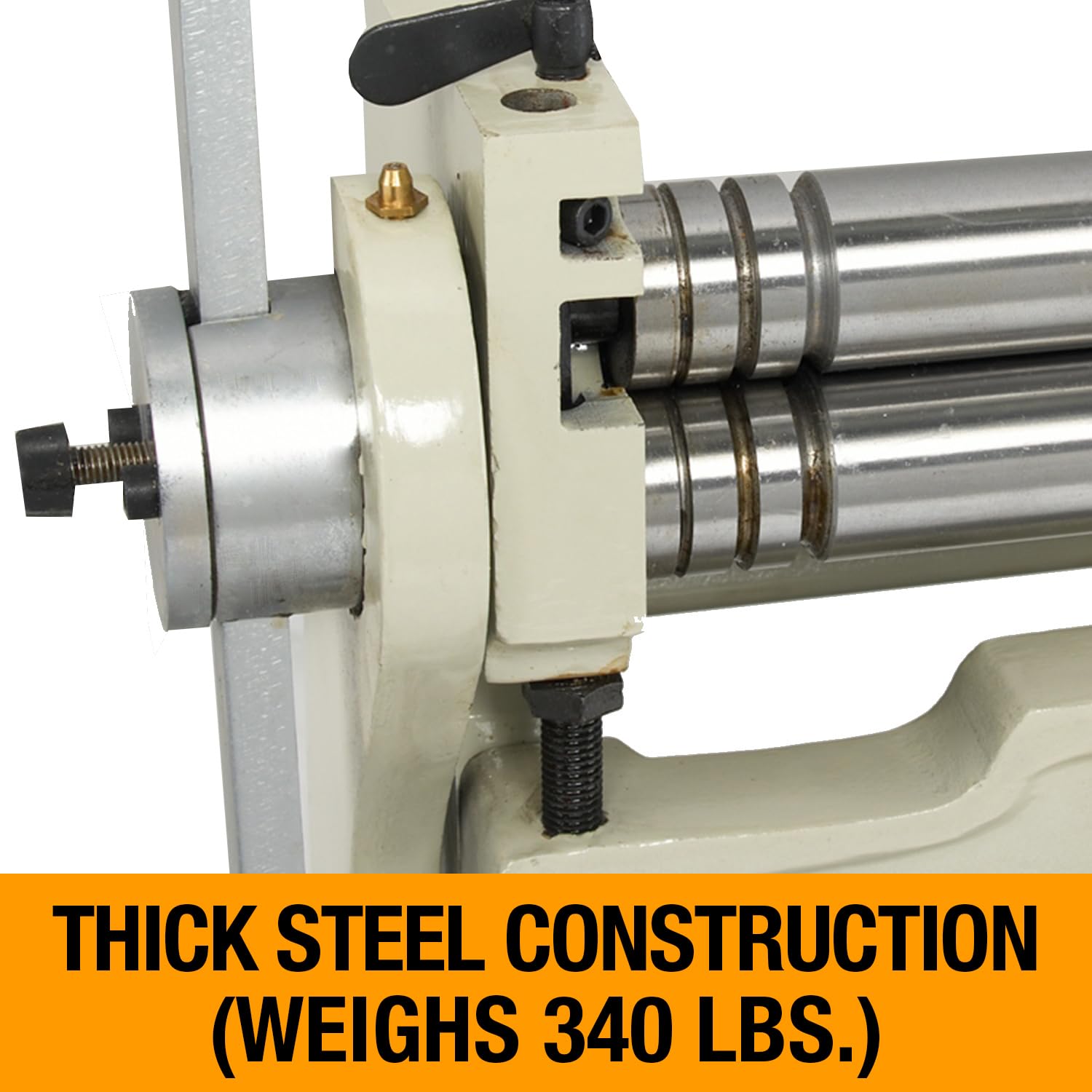

Slip roll on top; press brake in the middle; shear on the bottom. This 3-in-1 combo machine saves space. The Baileigh SBR-3020 Shear Brake Roll is a great choice for small shops with low production runs and one-off projects. Adjust the camber of the tooling to keep pressure in the middle for a consistent bend across the full width. On the shear portion, a spring-loaded hold-down helps reduce burr on the cut and prevent waste. Hardened and reversible blades stay sharp for longer. Turn the handles 360° to get one full cycle from the slip roll, press brake, or shear. Baileigh SBR-3020 Shear Brake Roll comes with a 1-year parts warranty. We offer lifetime technical support by phone. Call our team of experienced reps whenever you need help. Recommended for: Hobbyists, maintenance, and R&D shops.

• 30" working width for manual shear, press brake, and roll
• Maximum capacity of 20-gauge mild steel and 16-gauge aluminum for all functions

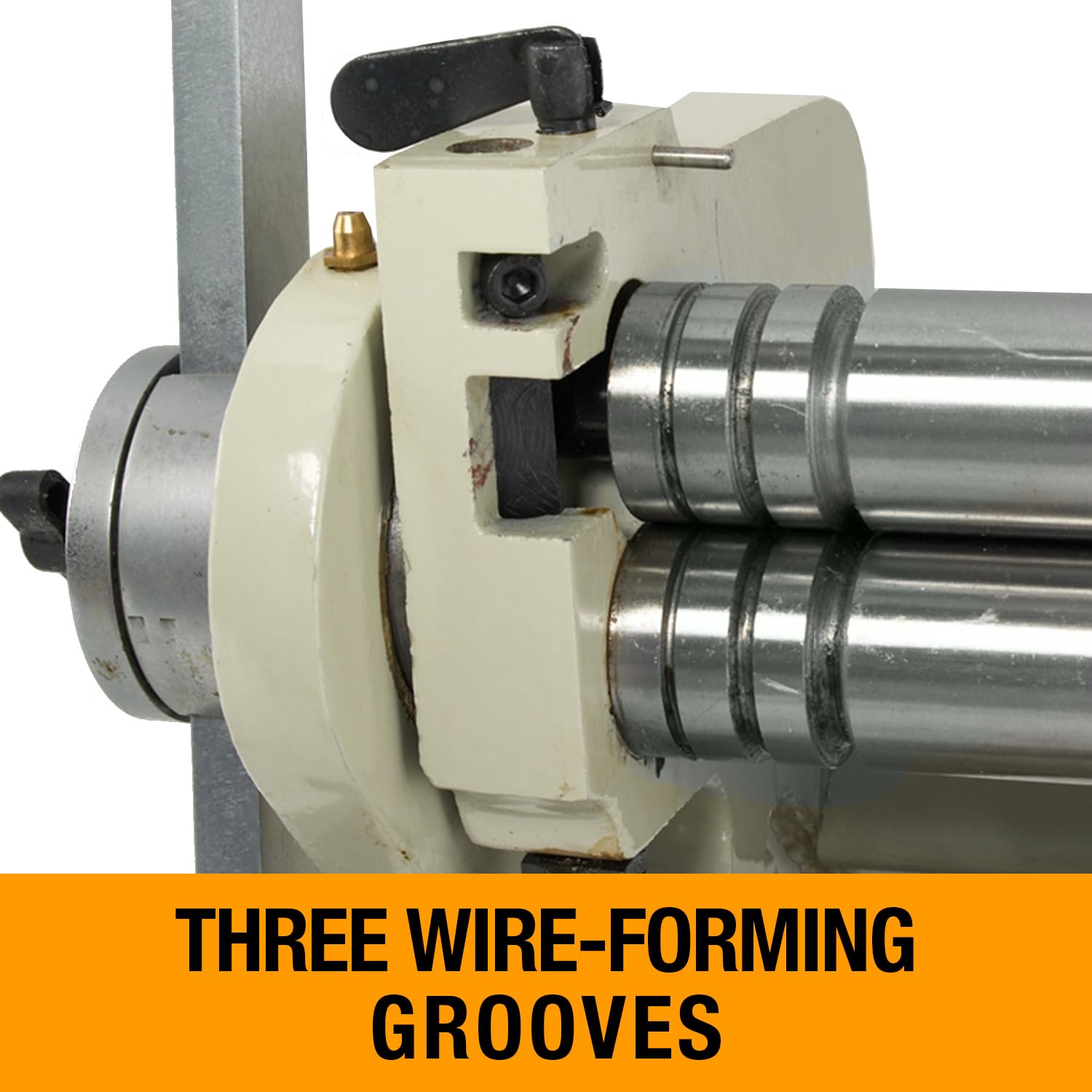

• Slip roll features three wire grooves
• Forms rolls down to 1.54" in diameter
• Vertical press brake portion bends up to 90°, so you can make perfect corners
• Press brake includes a V-die set with corresponding punch die on top to make a 90° bend

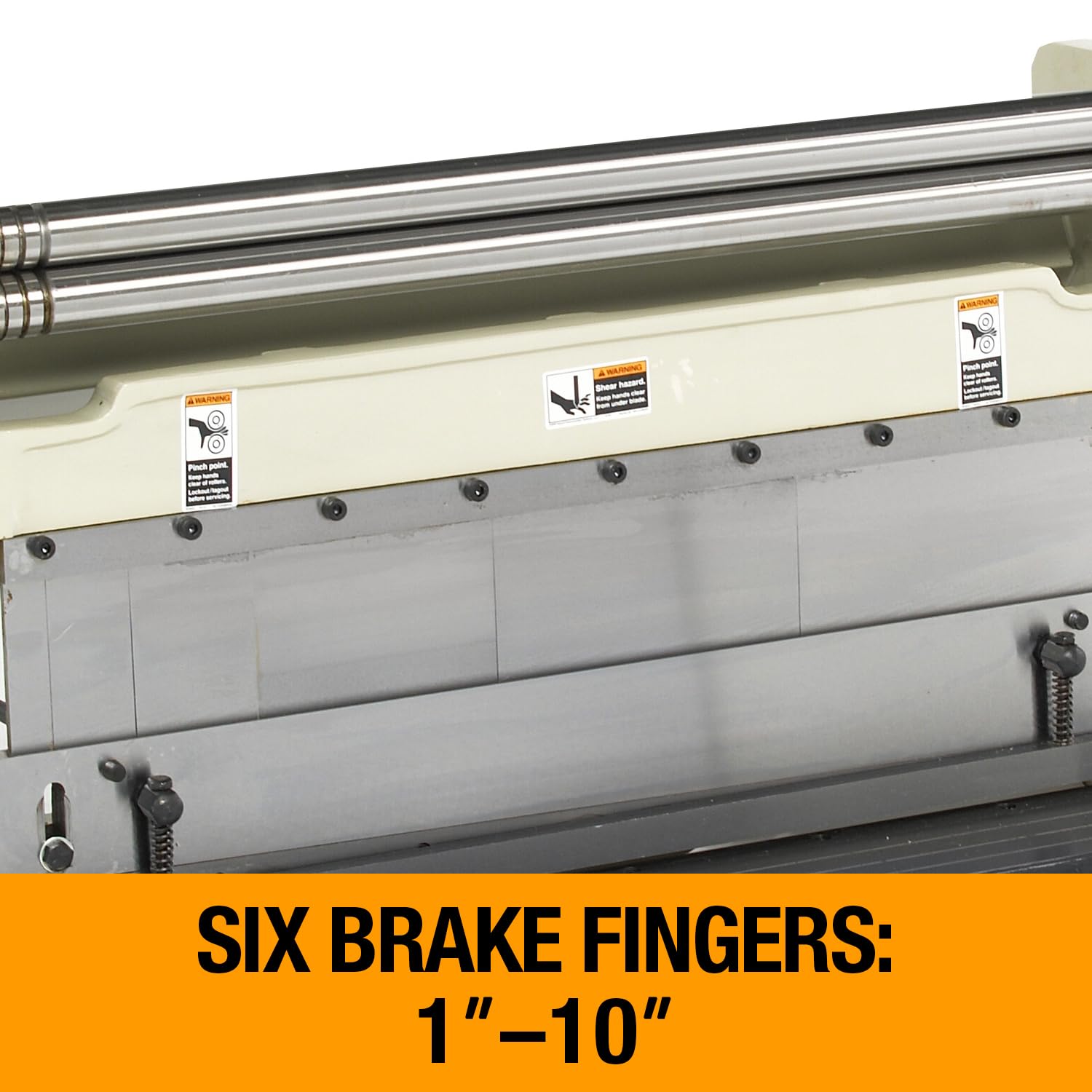

• Movable fingers on the top beam, ranging from 1" to 10-1/8", can make many box sizes
