CHANCS Torque Magnetic Mini Electric Motor 555 DC 24V Speed 3500RPM with Backet for DIY Hobby DIY Electric Screwdriver Drill Tools

555 high torque PMDC motor . Brushed motor with ventilation holes.Iron case in back which can enhance motor stability. Replacement your electrical and testing equipment a new lease of life Benefiting from high torque and low noise,solidly constructed, Specially for PCB Jewelry walnut drilling.Suitable for DIY hand drill. 【Specification】 Model: 555 Motor Voltage: 12V DC Motor Diameter: 37mm Size: 37*37*57mm Shaft Diameter: 3.17mm Types of shafts：Double shaft Speed: 8000RPM; Rotation: CW/CCW 【Application】 Specially for PCB Jewelry walnut drilling.Suitable for DIY hand drill. 【Package Content】 1 x Motor 【Attention】 he applicable voltage of the motor is 12V, the use of unsuitable voltage will cause the motor to burn, please choose the right voltage correctly.

• *It's a 555 motor and bracket kit.The 555 high torque PMDC motor operateds on DC 12-24V, the set thick 2mm, hardened and rustproof, suitable for motors with 25mm hole pitch, such as 540, 550, 555, etc.
• *Replacement your electrical and testing equipment a new lease of life Benefiting from high torque and low noise,solidly constructed, Specially for PCB Jewelry walnut drilling.Suitable for DIY hand drill.
• *The specification of motor: Motor Diameter: 37mm (1.405") Size: 37*37*57mm Shaft Diameter: 3.2mm Shaft Length: 10mm Working Voltage: 12-24V DC Speed (24V DC): 3500RPM Rotation: CW/CCW,No-load current: 70mA, Load current: 350mA, Locked Rotor Current: 1.9A, Load Torque: 0.2 kg.cm, Locked Rotor Torque: 1.5kg.cm

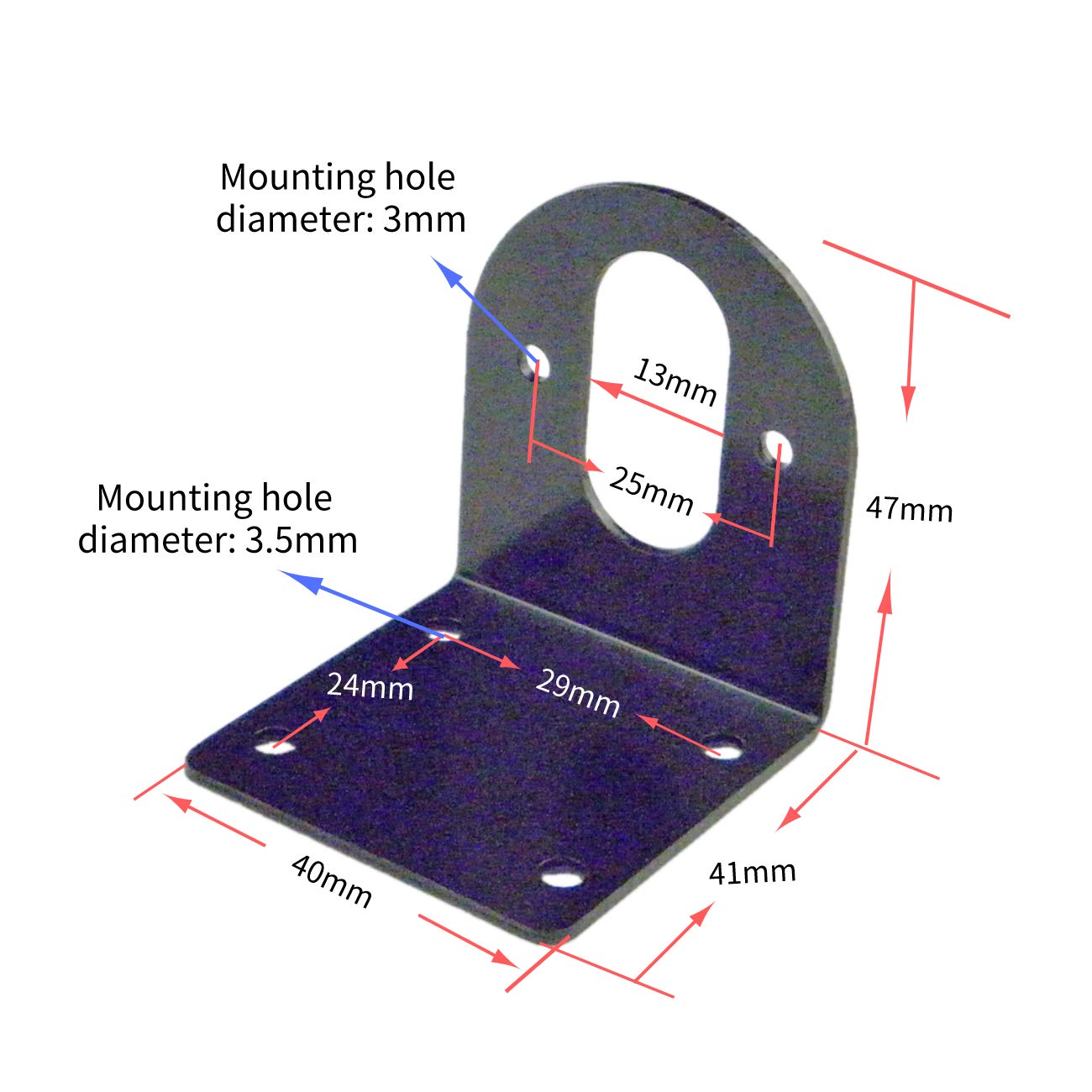

• *The specification of bracket: Length: 24mm; Width:40mm; High: 47mm; Thick:2mm;
• *Package: 1 x motor,1 x bracket, 6 x screws, 4 x nuts.
