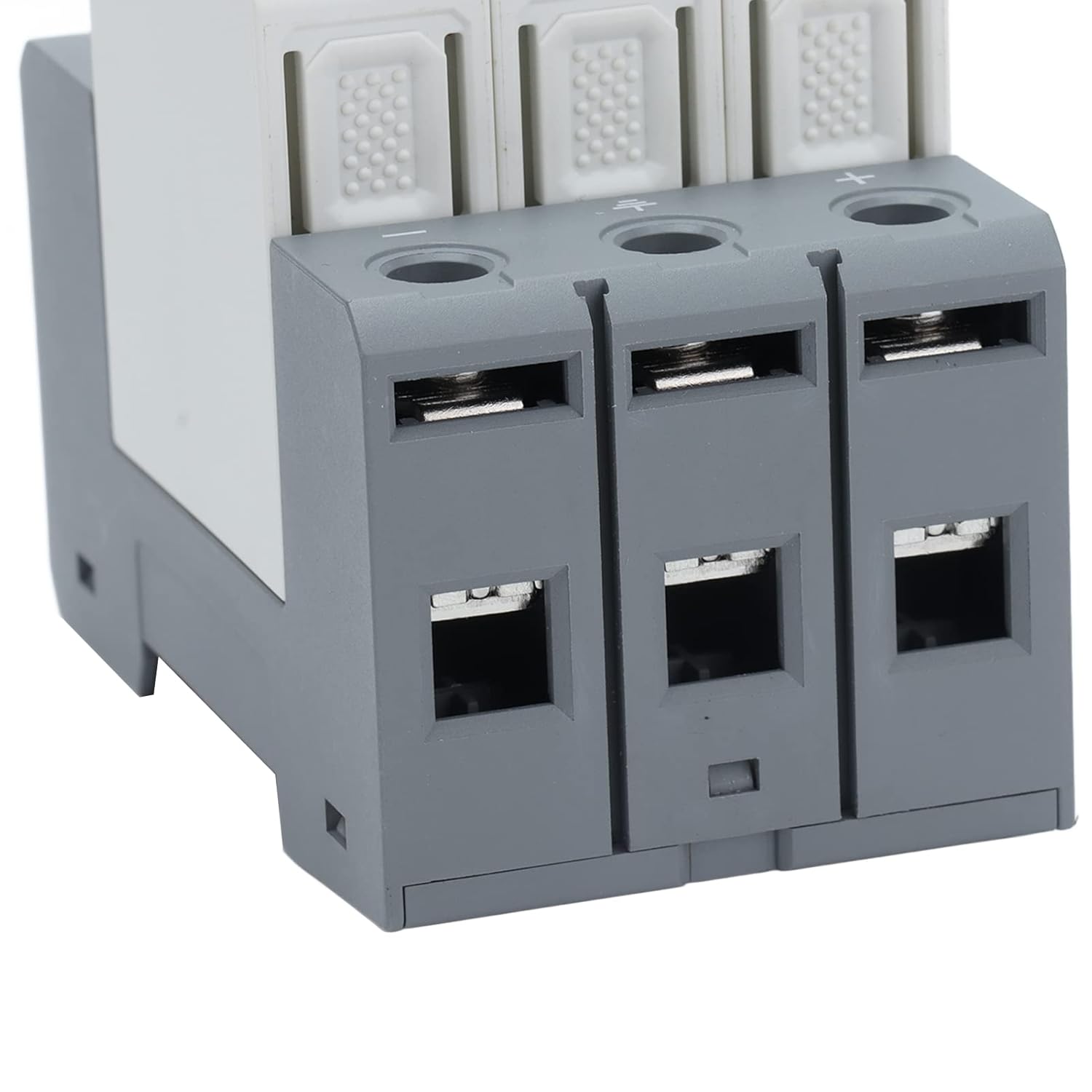

CHLT-40PV Voltage Surge Arrester Device 1000V DC 3P House Low Voltage Protector Device 20‑40KA Photovoltaic Thunder Protector for DC Power System

Our store has a variety of products, mainly industrial products, which can fully meet most of your daily needs. Our store has always been committed to providing convenience for your life. If you encounter problems during the purchase process, you can always Get in touch with us and we'll be sure to get back to you as soon as possible. Specification:Item Type: Voltage Surge Arrester DeviceModel: CHLT-40PVMaximum Continuous Working Voltage: 1000V DCNominal Discharge Current: 20kA (8/20μs)Maximum Discharge Current: 40kA (8/20μs)Voltage Protection Level Up: ≤3.2kVNumber of Poles: 3PProtection Level: IP20Working Temperature: -40℃~80℃, Humidity: ≤90% (Average at 25℃) Package List:1 x Surge Protection Device2 x Insert Tips:1. The power must be cut off before installation, and live operation is strictly prohibited;2. When installing, please connect according to the installation diagram, where + is the positive wire and ‑ is the negative wire. Do not connect wrongly. After installation, close the automatic circuit breaker (fuse) switch and check whether the working state is normal.

• BASIC PARAMETERS: Photovoltaic thunder arrester model is CHLT-20PV, the maximum continuous working voltage is 1000V DC, the number of poles is 3P, and it can provide stable performance within the temperature range of - 40 ℃ to 80 ℃.
• MAIN FUNCTIONS: Surge protector can quickly open in nanoseconds when the system has surge overvoltage due to thunder stroke or other reasons, and introduce surge overvoltage to the ground to protect electric equipment.
• MULTI PURPOSE: House voltage protection device supports short circuit protection and overload protection, which can respond quickly when thunder strikes, unload voltage, and protect your household appliances and safety.
• HIGH QUALITY MATERIALS: Power distribution and control equipment is made of high quality ABS materials, with stable performance, which can help you complete your work effectively and can be used together with the circuit breaker of the distribution box.
• EASY TO INSTALL: Voltage arrester has a clear structure and is installed in a rail way. It is simple to install and can be installed in a few minutes. It is suitable for installation in distribution boxes and cabinets.
