Gigabit PoE Outdoor Waterproof Extender 5 Port, 1 PoE in & 4 PoE Out 90W Ethernet Passthrough Switch, IEEE 802.3af/at/bt Compatible, Plug and Play, Wall Mount
$28.25
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by school.anne.education
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$28.25
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by school.anne.education
Free 30-day returns Details
Product details
| Management number | 217019736 | Release Date | 2026/04/19 | List Price | $11.30 | Model Number | 217019736 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Outdoor Waterproof PoE Extender】Include 1x gigabit (PoE/90w) power input port, 1 gigabit (PoE/60w) output port and 3 gigabit (PoE/30w) power output ports. The total maximum power of the extender is 90W. Powered by PoE network, no AC power supply required;
- 【IEEE 802.3 af/at/bt】All ports support this standard PoE, Input Max 90W IEEE802.3bt, Port 1-3 Output Max 30W IEEE802.3af/at, Port 4 Output Max 60W IEEE802.3bt. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Port 1-3 Output: 1/2 (+), 3/6 (-). Port 4 Output: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);

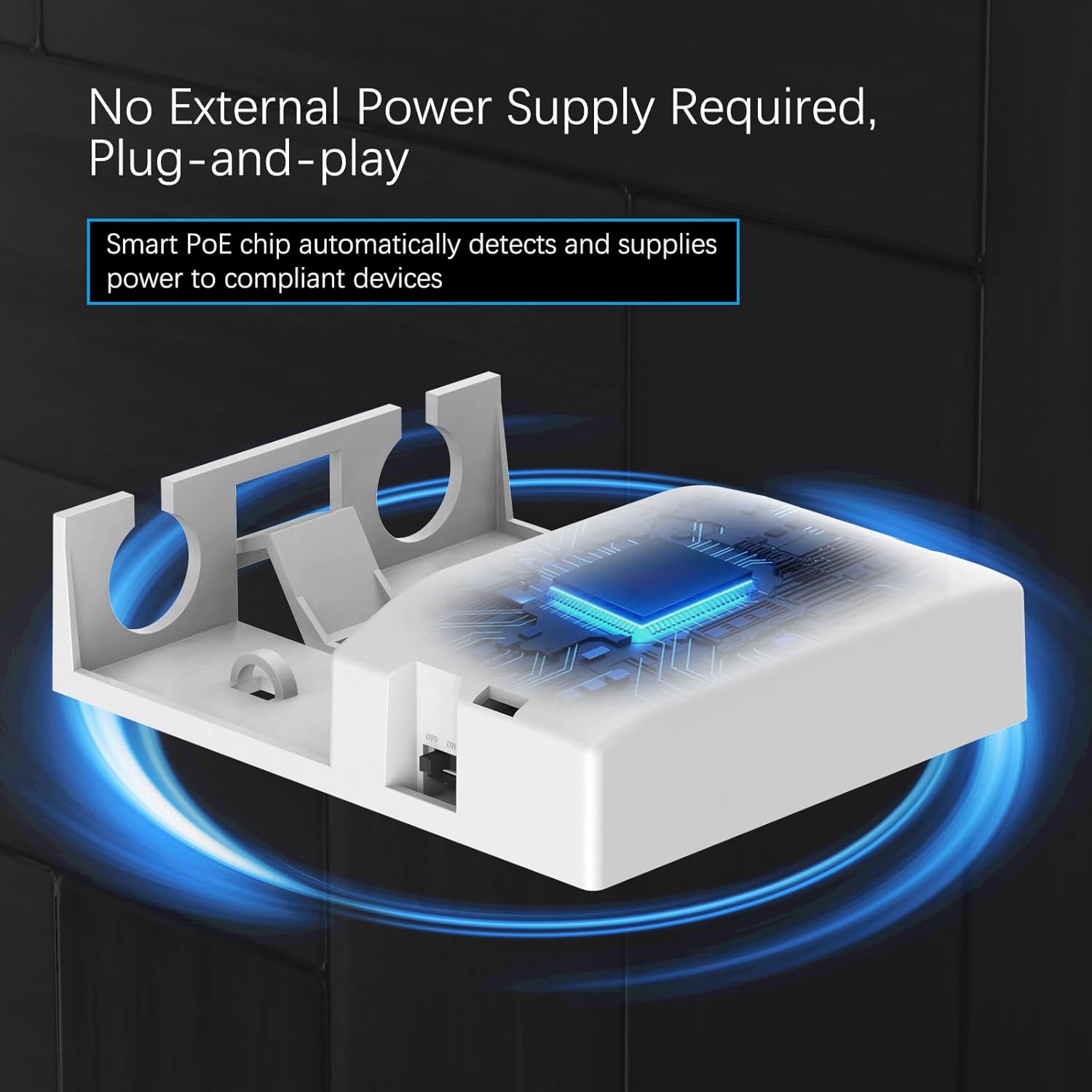

- 【Plug and Play】 Truly plug-and-play setup—no software or complex settings required. Simply connect to any PoE active switch and daisy-chain devices. Extends the range of poe and ethernet an additional 100 meters;

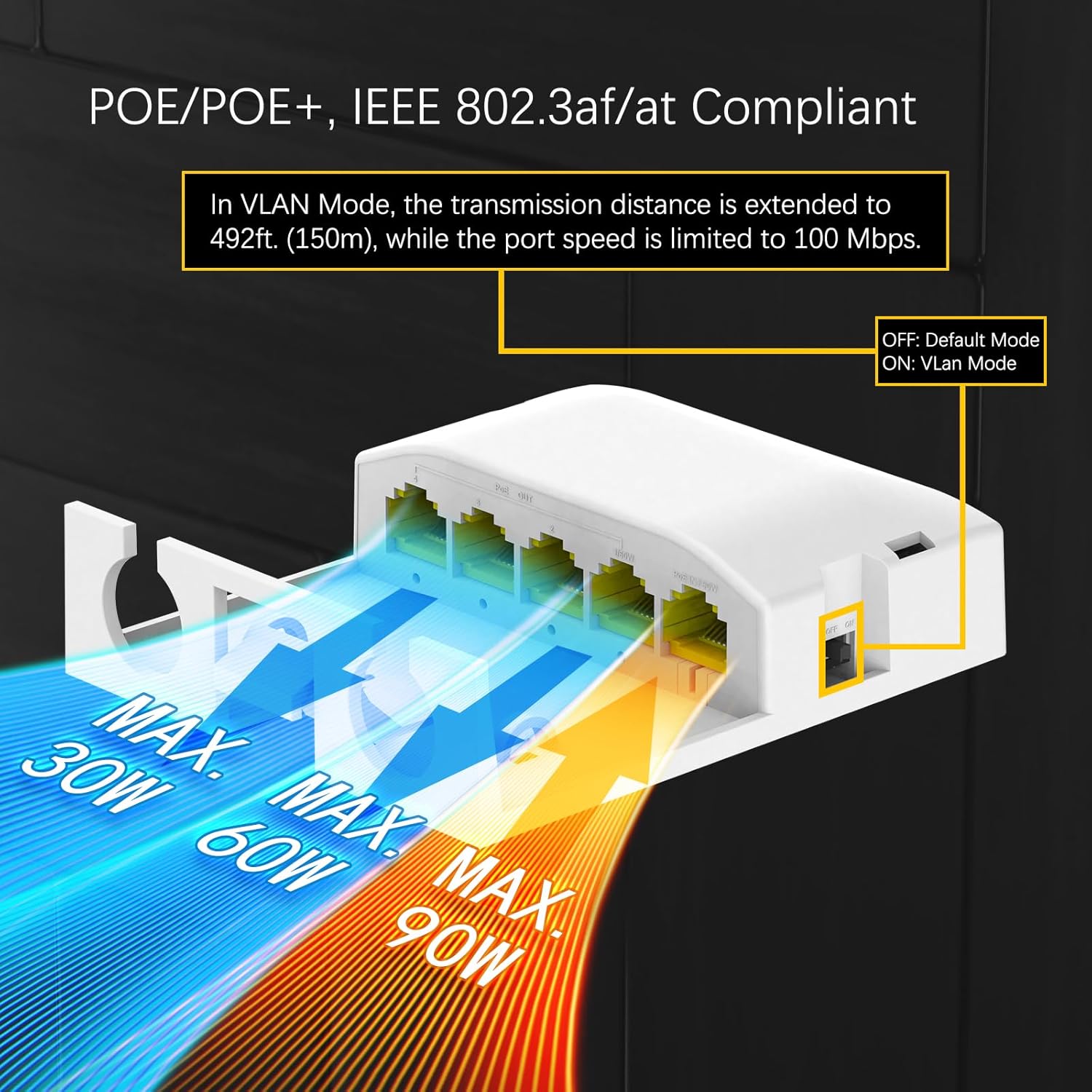

- 【Dual Mode Option】When the switch is set to OFF, the device operates in default mode, supporting a transmission rate of 1 Gbps with a 100-meter transmission distance. When the switch is set to ON, the device enters VLAN mode, extending the transmission distance to 150 meters, but the transmission rate reduces to 100 Mbps.
- 【Easy Install】 Engineered with wall-mount slots and space-saving compact size, this extender effortlessly adapts to control cabinets, ceiling voids, or narrow conduits;
- 【Widely Used】 Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost. Ideal for lofts, warehouses, hotels, smart communities, and more;
- 【About IP55 Rating】In the IP rating, the first number represents the dust protection level, and the second number represents the water protection level. For example, IP55 and IP65 offer the same water resistance performance, but IP65's dust protection requires the product to be fully sealed. Currently, no similar products on the market meet this dust protection standard, so please pay attention to identification.
