Hydraulic Electrical Solenoid Valve with manual override: 21 GPM: 4560 psi: 12VDC 24VDC 110VAC D03 (NG6) Mounting VSD6-M series (H-Open -All Ports Open to Tank in Center, 12VDC)

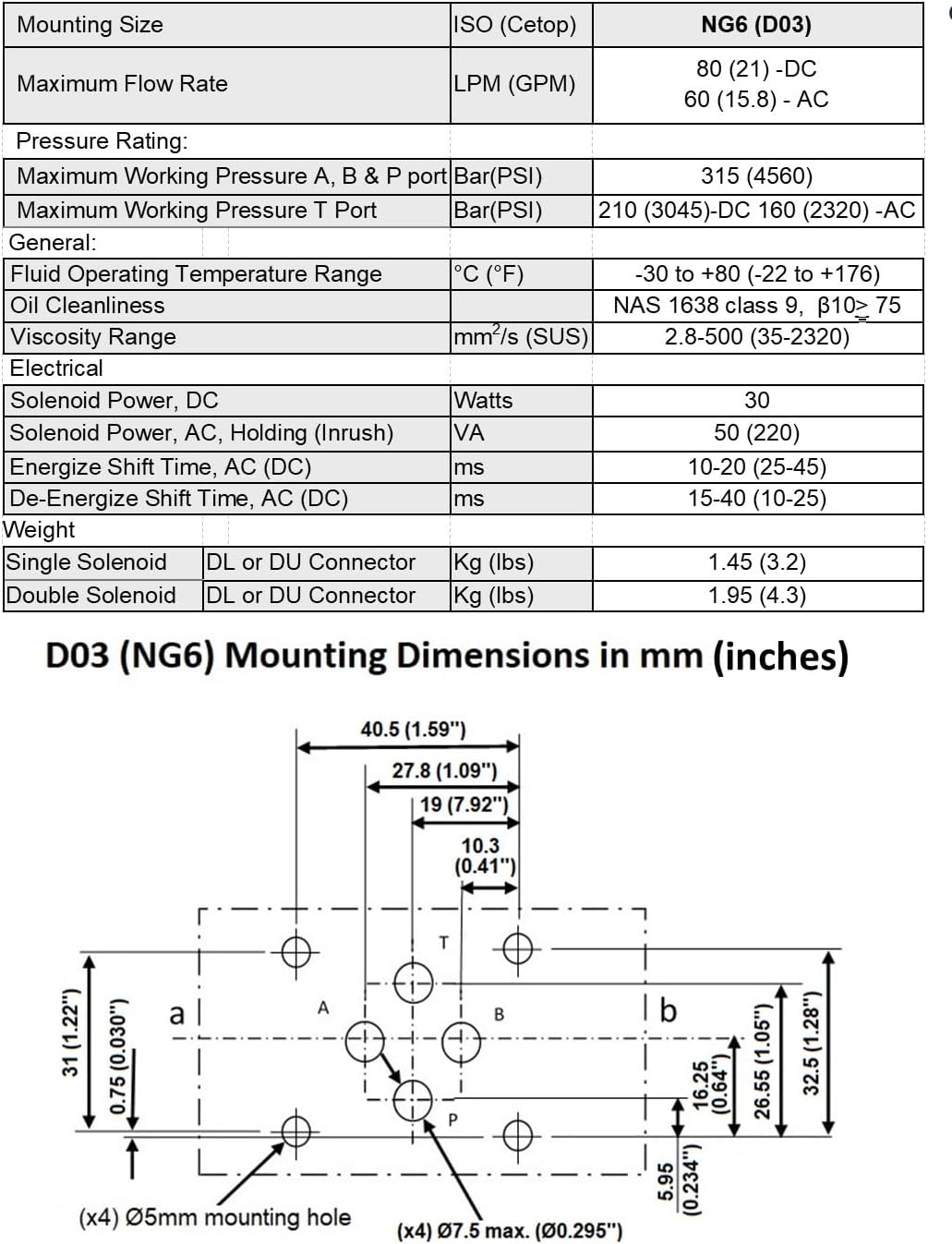

Hydraulic Directional Control Valves are used to control the hydraulic oil flow path to an actuator (cylinder or motor). The valve comes with a solenoid for electrical control and a lever to manually operate the valve. The variety of spool options available allow for various movement types based on the application requirements of your cylinder or motor. Proven high quality robust valve design successfully designed into many high volume applications. D03 (NG6) Cetop mounting. Can be mounted to standard available subplates and bar manifolds. Maximum flow of 21 gpm for DC power and 15.8 gpm for AC (reference Solenoid Power limit chart) Maximum working pressure = 4560psi (315 Bar) 3-position, 4-way, Spring centered, energize to shift Double solenoid operated Removable Coil Valve can be mounted in any direction Coil can be rotated to optimal connector position Uses DIN 46350 Form A electrical connection type Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil. IP65 rating NBR Buna Seals Four fastening screws included, M5x45mm long White label with no logo for OEM manufacturers. Weight = 4.3 lbs (1.95 kg) Solenoid Power: DC=30watts, AC=50VA holding and 220VA inrush

• Robust design proven in many high-volume original equipment manufacturers machines.
• Fluidhaus valve coils are fully encapsulated by injection molding. This is a more reliable sealing process than traditional potting, with better protection against moisture, vibration, temperature and provides greater life cycles.
• Rated IP65 for dust and water resistance.

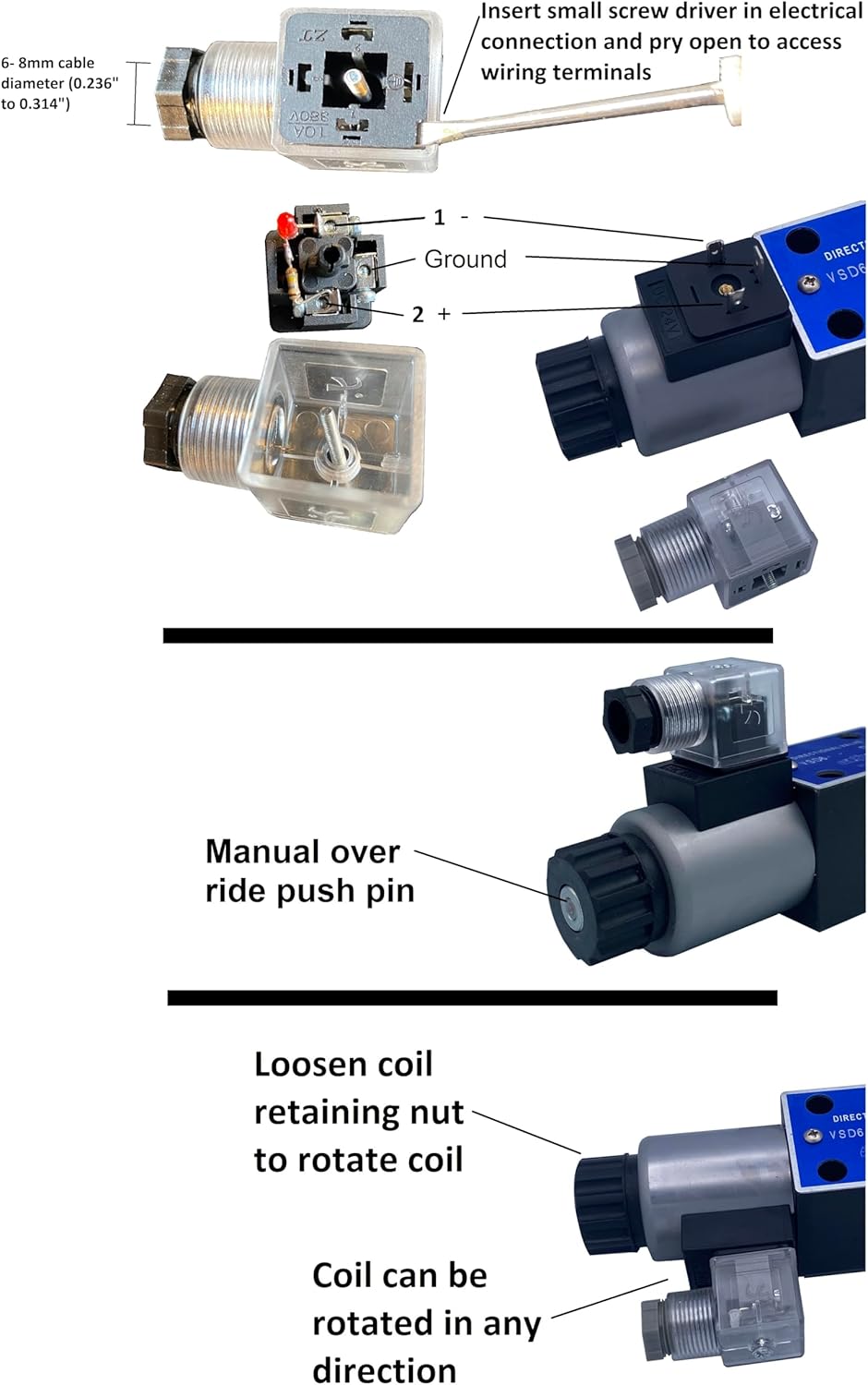

• Includes lighted DIN connector for each coil. LED illuminate’s clear connector housing when power is supplied to the connector/coil.
• Used in mobile, industrial. automation and construction equipment
• Purchase Fluidhaus sub plate or manifold series SAS6, MPA6 or MSA6 separately.
• Solenoid Power: DC= 30 watts, AC = 50VA (220VA inrush)
• Operating temperature = -22֯F to 174֯F
• Valve can be mounted in any direction.
• Upgrade from the following manufactures: Note: These are the basic model codes. Confirm the spool type symbol, voltage and electrical connector style. Eaton Vickers: DGV-3..... Hyvair: D03S-2..... Bosch Rexroth: 4WE6..... Continental: VSD03M..... Argo Hytos: RPE3 Double A Hydraulics Q03 Yuken: DSG.... Northman: SWH-G02
