ISURE MARINE Anodized Aluminum 16.7"x 16.7" Push Out Deck Hatch Boat Yacht Square Opening Portlight Replacement Window Porthole Hole Deck,Marine Hatch Porthole with Tempered Glass for Boat/Yacht/RV

ISURE MARINE Anodized Aluminum 16.7"x 16.7" Deck Hatch Boat Yacht Square Opening Portlight Replacement Window Specification : Item Type:Boat Square Porthole Color: Silver Frame Material: Aluminum alloy + toughened glass +ABS+ rubber Glass Material: Tempered Glass Overall size: 16.7"x 16.7"(425mm x 425mm) The Cut-out Size is 14.1"x14.1"(358mm x 358mm) Maximum light transmission size:13.2"x 13.2" (335mmx 335mm) Glass Thickness: 6mm / 0.23in Switching Mode: Push out type, with stainless steel support rod and fixed handle Feature: The overall frame of the escape window is made of heavy aluminum alloy and has been anodized to a surface.anti-aging and anti-corrosive Porthole has an push out type opening with switch lock handle and fixed support rod, Support rod with rotating fixed knob, fixed support function is convenient to enjoy the scenery along the way. 6mm(0.23inch) thickness tempered glass has high strength, clarity, chemical resistance. Corrosion free synthetic fittings and durable water-tight rubber seals. Easy to install, pre-drilled countersunk fastening holes (screws not included). The new-designed handles are leak-proof. If installed and used properly, the handles seal well and do not leak. Porthole has an push out type opening with switch lock handle and fixed support rod, pushing window can be used for 0 to 85 degree. The trim piece and screws are NOT included in the hatch package. Application: Suitable for boat, yacht, ship, and RV, and can be used for sunroof, escape window, storage compartment or any location. A solution for your boat yacht RV retrofitting and other projects, for your leakage, broken and unsatisfactory . Package includes 1 x Boat Porthole Important - Please measure carefully before placing your order. The model number is the Overall size of the hatch, but not the Cutout size.

• ✔Heavy-duty stabilized Anodized Aluminum Square Hatch Frame for Corrosion Resistance,provide a good touch and will not rust even in harsh Marine or outdoor environments.
• ✔Come with 316 stainless steel support, durable hinges, 2 Strong Nylon handles. 0.24" (6mm) thick of Smoke-Grey Tempered Glass Top.The smoke gray glass ensure that the light can enter the cabin, improving the brightness of the cabin.

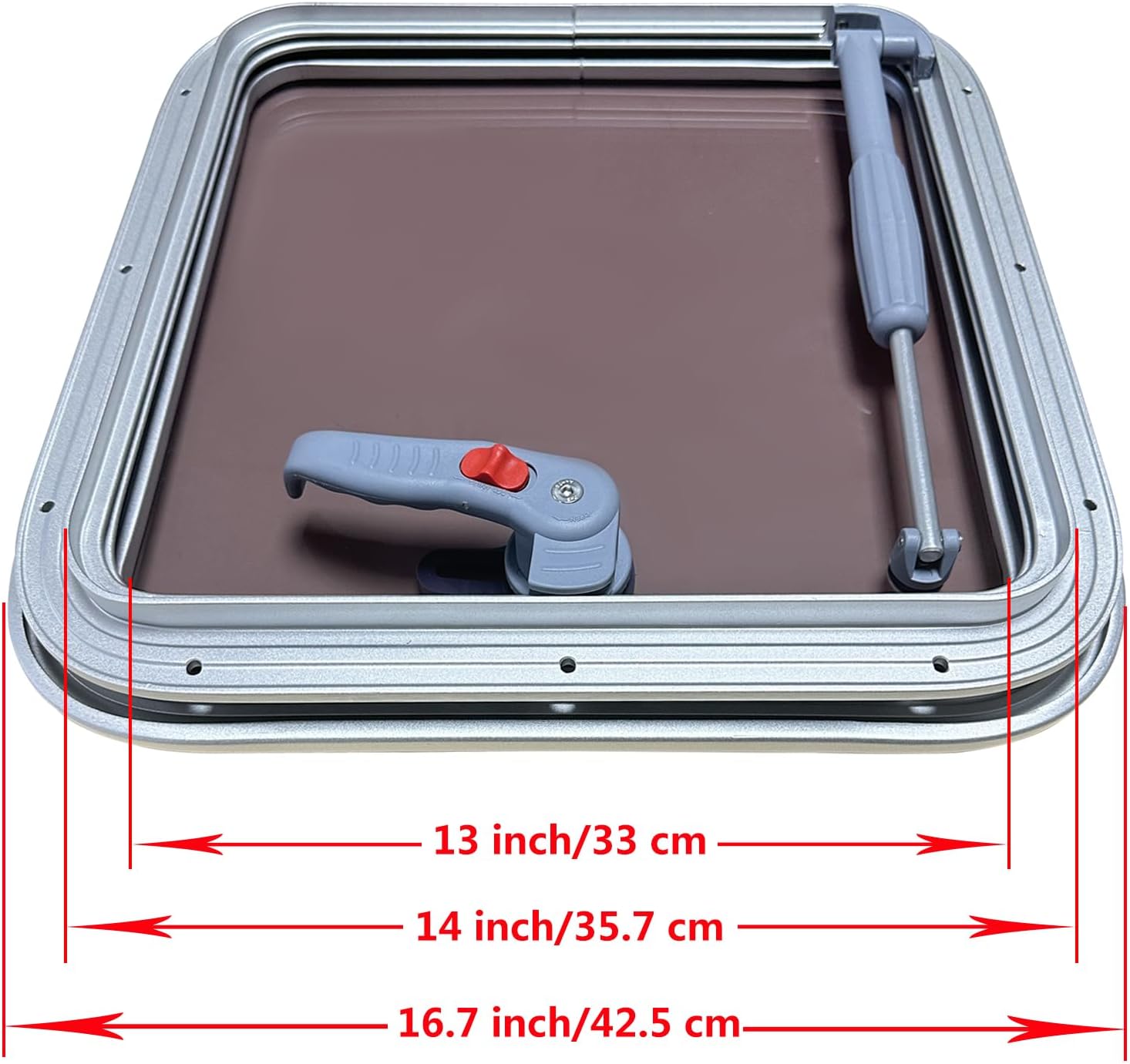

• ✔Overall size: 16.7"x 16.7"(425mm x 425mm);The Cut-out Size is 14.1"x14.1"(358mm x 358mm);Maximum light transmission size:13.2"x 13.2" (335mmx 335mm);Thickness:16.7"(47mm);Corner Radius: R1.8 inch (R45mm)
• ✔Rubber seal is weatherproofing when mounted on vertical surfaces. Good for boat, yacht, ship, and RV.The whole of the window frame is equipped with waterproof rubber , which ensures complete sealing and waterproof performance when the window is closed.
• ✔Low profile hatch, designed to installed on internal or external flat surface. Easy to install CE approved Stylish portlight.For Boat/Yacht/Nautical/RV, it's the nautical /RV solution for leaking, broken, and dissatisfying
