PJEZSNH000 Digital Temperature Controller, 230V/50-60Hz, 10A Compressor Relay Output, NTC Probe Input, Defrost & Fan Management Thermostat for Commercial Freezers, Coolers & Cold Storage

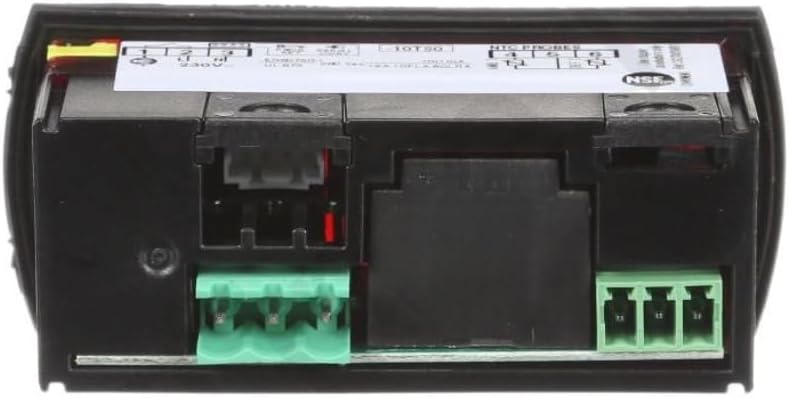

Part Number: PJEZSNH000Temperature Range: T50 (i.e., operating ambient temperature -10°C to 50°C)Electrical SpecificationsPower Input (Supply):Terminal 2 (L): LineTerminal 3 (N): NeutralPower Supply (Supply): 230V~ 50/60HzRelay Output (Load Control):Terminal 1: Load Output (Compressor/Load Control)Relay Specifications: 10(10)A, 12A 5FLA 30LRA (250V~)Note: High starting current capability, suitable for direct compressor drive.Sensor Inputs (NTC PROBES)Ambient/Enclosure Temperature Probe (AMB.T.): Terminals 4 and 5Defrost Probe (DEF.T.): Terminals 5 and 6 (Circuit diagram indicates shared terminal 5)Probe Type: NTC ThermistorOther Expansion InterfacesPROG.KEY: Programming Key Interface (for parameter configuration and data cloning)SERIAL CONV: Serial Converter Interface (for communication)

• NTC Sensor System：Equipped with high-quality NTC sensor inputs.These sensitive probes detect temperature changes instantly, allowing the controller to react quickly to heating or cooling needs, providing real-time monitoring for your equipment.
• Precise Temperature Control: Maintains accurate temperature setpoints for commercial refrigerators and freezers, ensuring stable cooling performance and efficient equipment operation.
• Durable & Reliable: Rated for industrial use with wide operating temperature range and high-load relay capacity for demanding commercial environments.
• Easy Installation: Clear wiring terminals and compact design allow for quick replacement or new setup without complicated programming.
• Installation Note：Please strictly verify that your power supply voltage matches the controller specifications before installation.
