Solar Panel MPPT Tester 1600W, Portable Photovoltaic Multimeter Tracking Max Power Point Watt Volt Current, Open Circuit Voltage, Ultra Clear Backlit LCD Display, MC4 Connector Alligator Clip Included

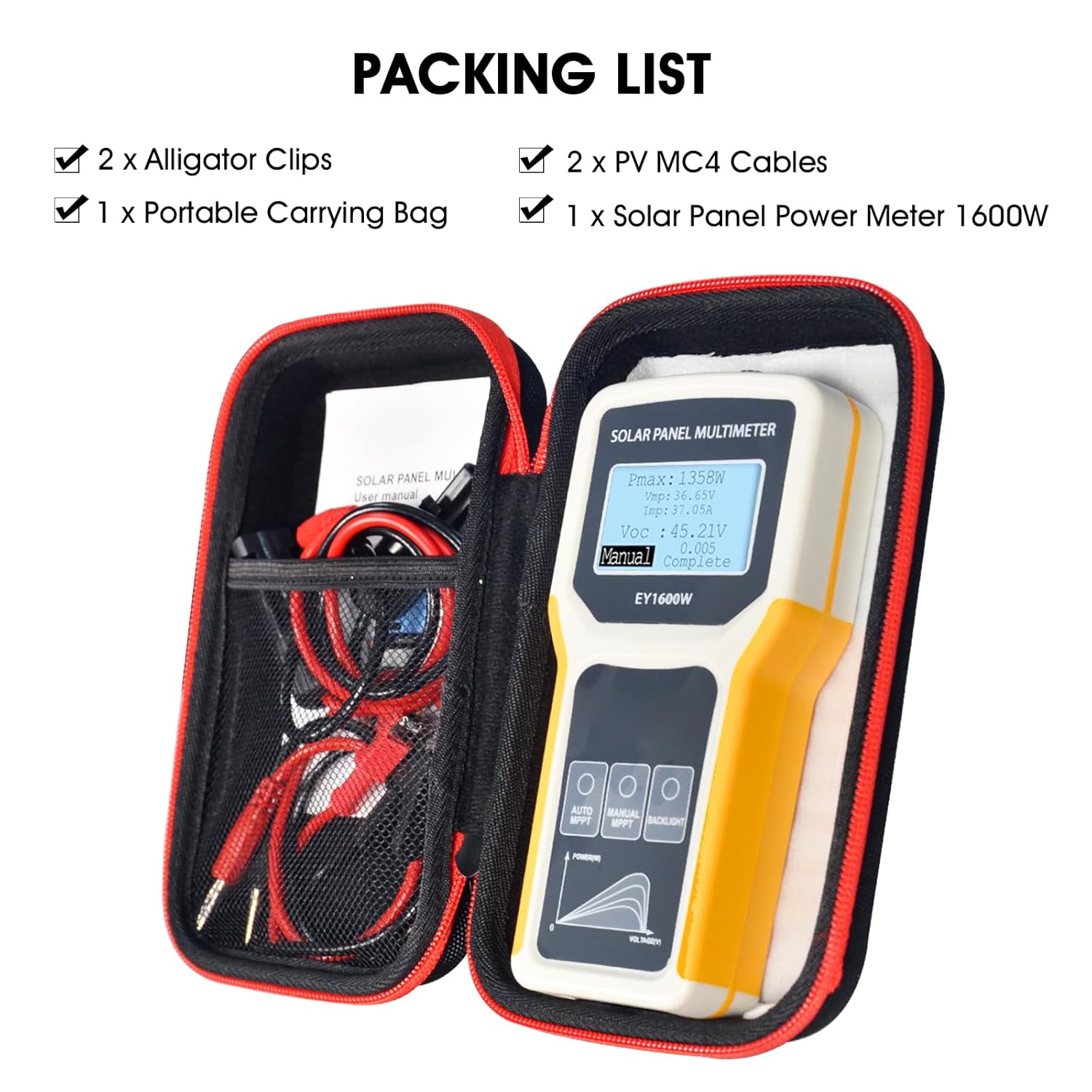

Solar Multimeter EY1600W is an essential tool for any solar installation or maintenance project. This handheld solar panel power tester can help you accurately measure power, voltage, and current measurements for your photovoltaic system, ensuring optimal performance and efficiency.Specifications:Power: 5 ~ 1600WVoltage: 12 ~ 60VCurrent: 0 ~ 60APower supply mode: solar panel power supplyFunctions:AUTO MPPT testManual MPPT testBacklit LCD DisplayReverse ProtectionOver rated power ProtectionOver Voltage/Current ProtectionOver Temperature ProtectionOpen Circuit Voltage VOC DisplayNo additional power supply requiredPacking List:1 x Solar Panel Power Meter 1600W1 x Portable Carrying Bag2 x PV MC4 Connector2 x Alligator Clips

• ✅Solar Panel MPPT Meter: Handheld solar power meter EY1600W allows for precise power measurements ranging from 5 to 1600W, voltage between 12 to 60V and current up to 60A. Whether you're troubleshooting a residential rooftop solar power system or optimizing a solar farm, this meter has you covered.
• ✅Clear and Bright Display: The high-definition backlit display is easy to read even under direct sunlight.Solar power analyzer simultaneously shows Pmax (maximum power point power), Vmp (maximum power point voltage), Imp (maximum power point current), and Voc (open circuit volt), providing all the information you need at a glance. Easily monitor your solar on-grid / off-grid system's performance and make necessary adjustments to maximize efficiency and power generation.

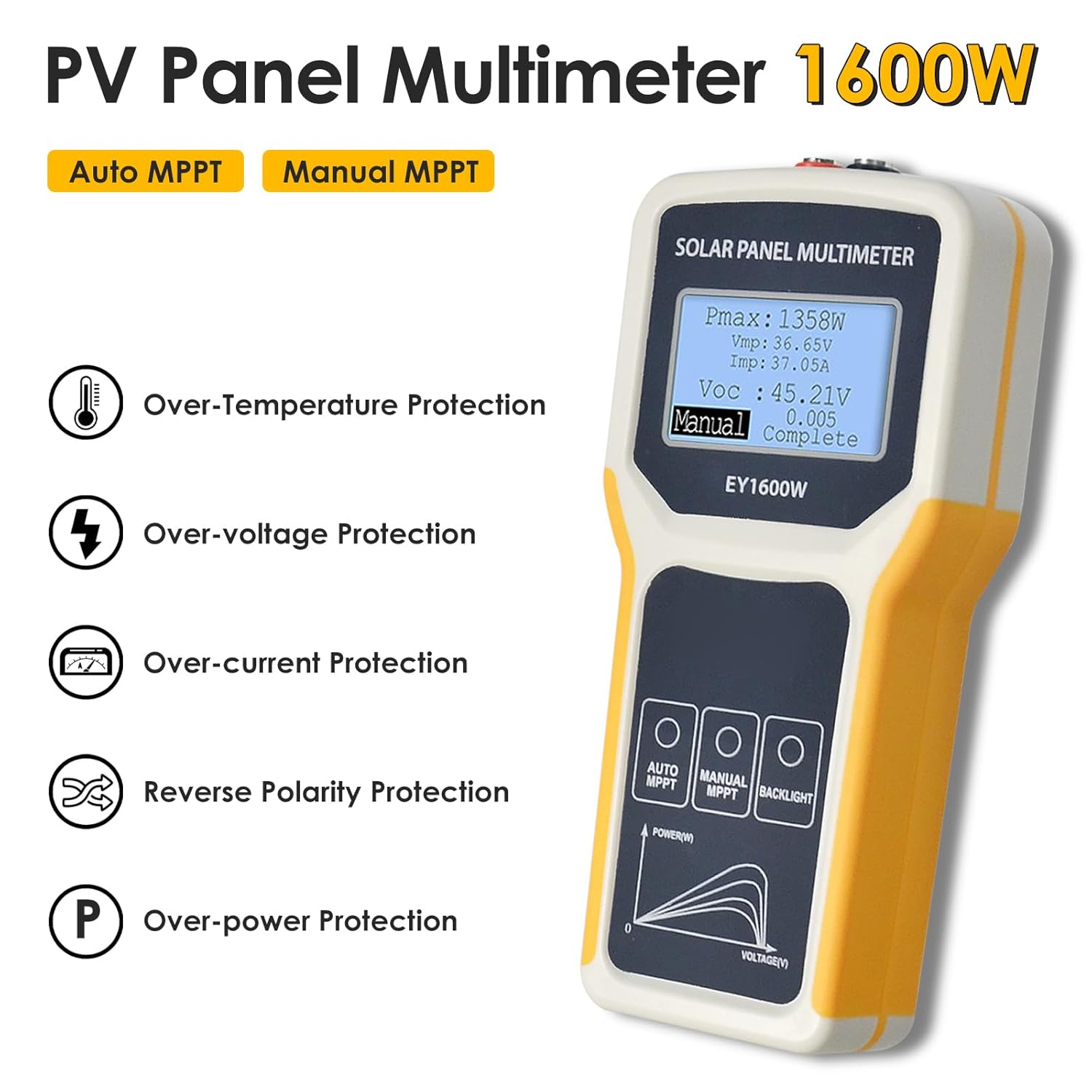

• ✅Comprehensive Safety Features: Designed with user safety in mind, this solar PV tester includes protections for over-temperature, over-voltage, over-current, reverse polarity, and over-power. The clear indications on the meter's display ensure safe operation within its rated specifications.
• ✅Solar-Powered: Powered by solar energy, this meter doesn't require additional batteries.Just connect it to the solar panel with the attached MC4 connector wires and Alligator clip, then it works. Weighing only 450g with a handheld design (165x80x30mm), this solar meter is easy to carry around to site to judge whether your solar PV is working well or find out the best angle or place for solar panel position.

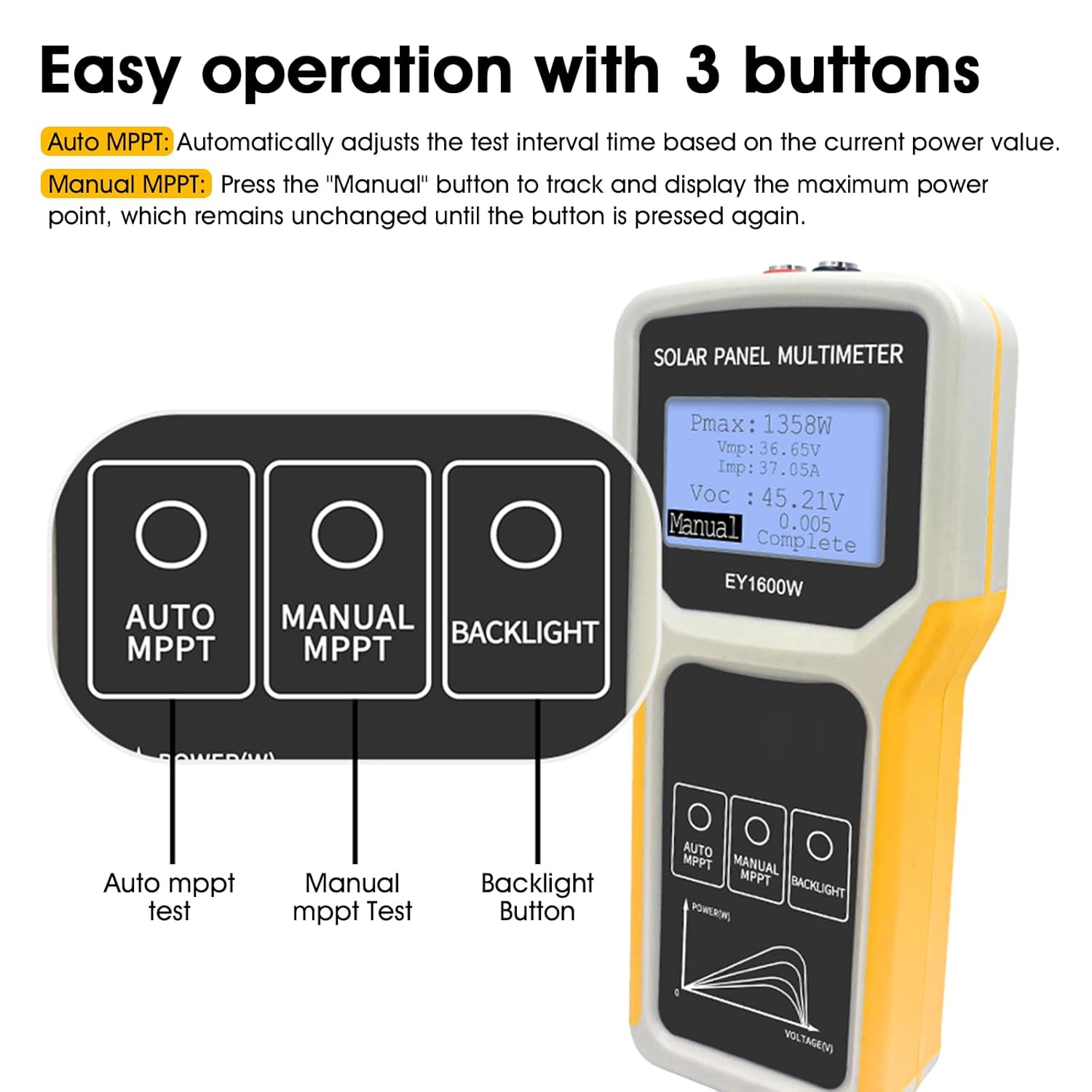

• ✅Easy to Use: The three-button operation makes this photovoltaic multimeter simple to use; the "Auto MPPT" and "Manual MPPT" buttons control the testing mode and refresh the digital display, while the "Backlit" button controls the screen's backlight. Quality solar panel diagnostic tool comes with handheld carrying case and a 365-day quality warranty for peace of mind.
