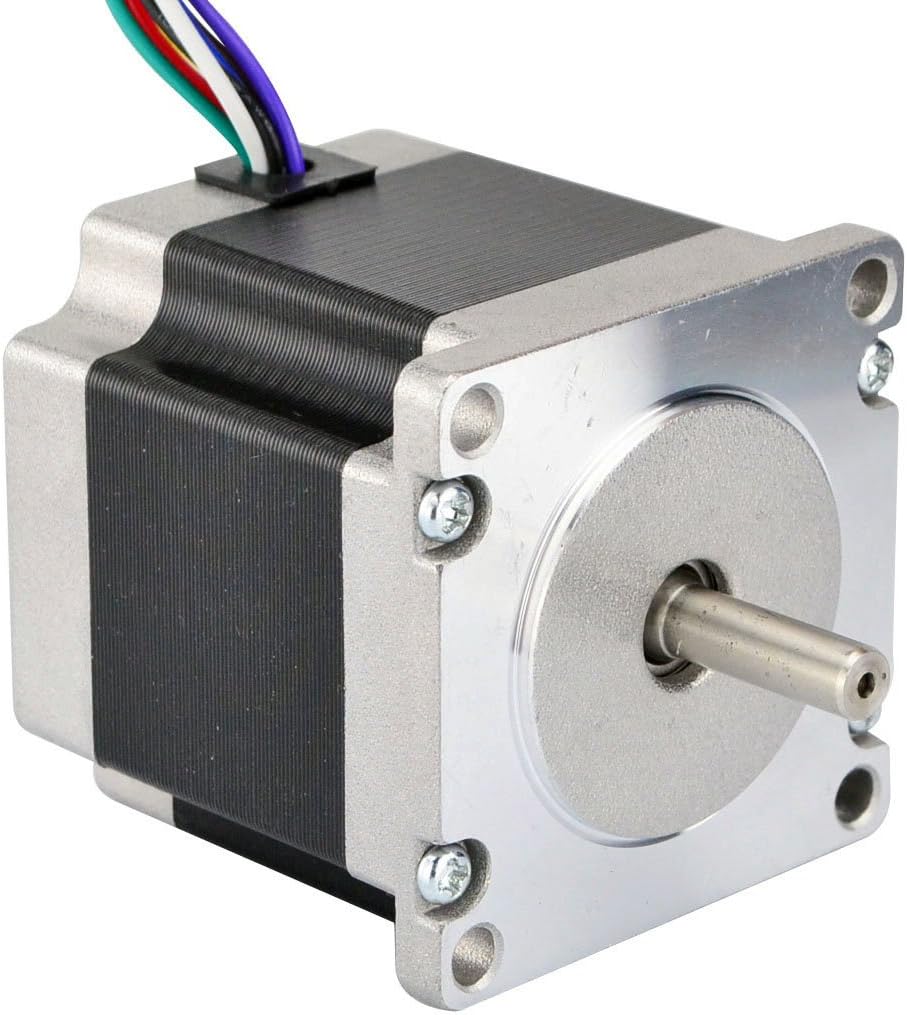

STEPPERONLINE Dual Shaft Nema 23 CNC Stepper Motor 1.26Nm(179oz.in) 8 Wires CNC Mill Router

This is one of the most popular models for DIY CNC. We have upgraded motor from 6 wires to 8 wires, which you can give three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish. A rear shaft can mount encoder, hand wheel or equals. Electrical Specification: * Manufacturer Part Number: 23HS22-3008D* Motor Type: Unipolar/Bipolar Stepper* Step Angle: 1.8°* Holding Torque(Unipolar): 0.9Nm(127.5oz.in)* Holding Torque(Bipolar Serial): 1.26Nm(178.5oz.in)* Holding Torque(Bipolar Parallel): 1.26Nm(178.5oz.in)* Rated Current/phase(Unipolar): 3.0A* Rated Current/phase(Bipolar Serial): 2.12A* Rated Current/phase(Bipolar Parallel): 4.24A* Phase Resistance(Unipolar): 0.75 ohms* Phase Resistance(Bipolar Serial): 1.5 ohms* Phase Resistance(Bipolar Parallel): 0.375 ohms* Recommended Voltage: 24-48V Physical Specification: * Frame Size: 57 x 57mm* Body Length: 56mm* Shaft Diameter: 6.35mm * Front Shaft Length: 21mm* Rear Shaft Length : 15mm* Number of Leads: 8* Lead Length: 500mm* Weight : 0.7kg Connection: RED(A+), YEL(A-), BLK(C-), BLU(C+), WHT(B+), PUR(B-), GRN(D-), BRN(D+) Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

• Dual Shaft Stepper Motor
• 8 wires Unipolar or Bipolar
• Holding Torque: 1.26Nm(178.5oz.in)
