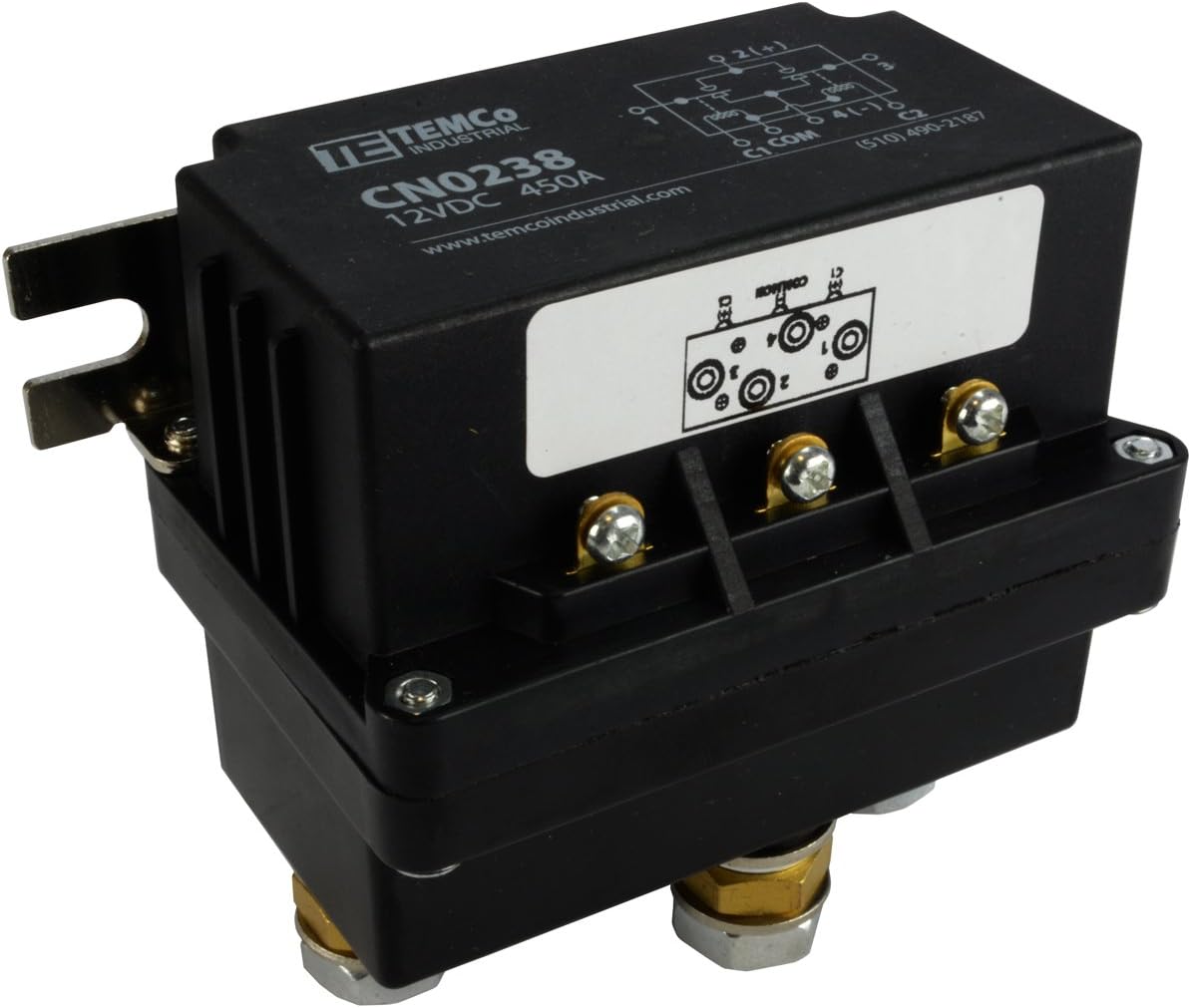

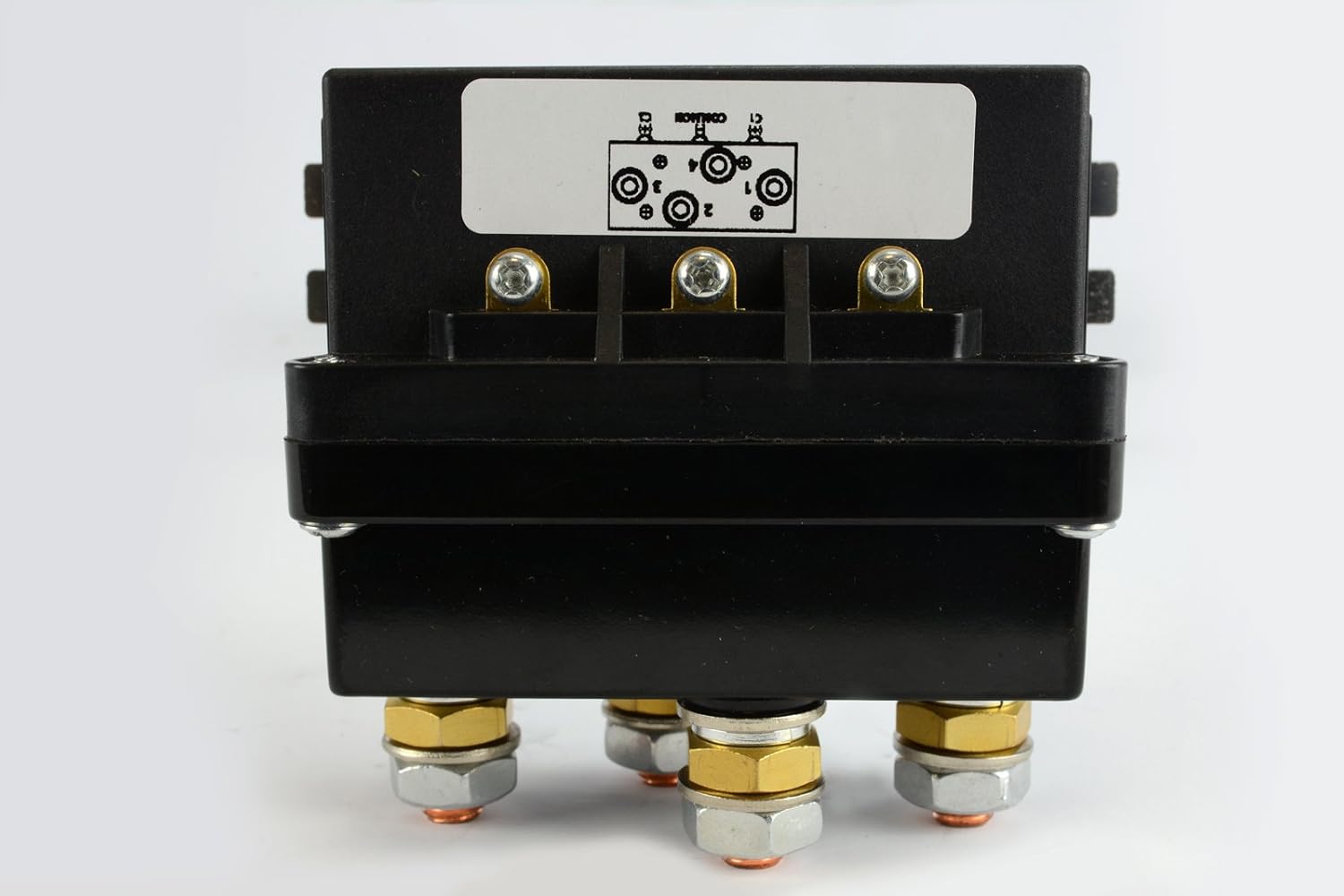

Temco 2 LOT 450 Amps DC Winch Motor Reversing Solenoid Relay Switch 12 Volt Contactor 5 Year Warranty
Product details
| Management number | 215612314 | Release Date | 2026/04/12 | List Price | $41.67 | Model Number | 215612314 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Coil Voltage: 12 VDC Switching Current: 450 Amps Contact Voltage: 80 VDC maximum Insulation Resistance: 100 MOhm Dielectric Strength: Between open contacts - 900 VAC, Between coil & contact - 900 VAC Mechanical Cycle Life: 100,000 operations Electrical Cycle Life: 20,000 continuous operations at 100A, 2000 intermittent operations at 450A Temperature Range: ~40 to +55 deg C IP Rating: IP67 Warranty: 5 YearsNote: Not rated for continuous duty.
| Brand | Temco |
|---|---|
| Item Weight | 4 pounds |
| Manufacturer | TEMCo |
| Manufacturer Part Number | CN0239 |
| Is Discontinued By Manufacturer | No |
