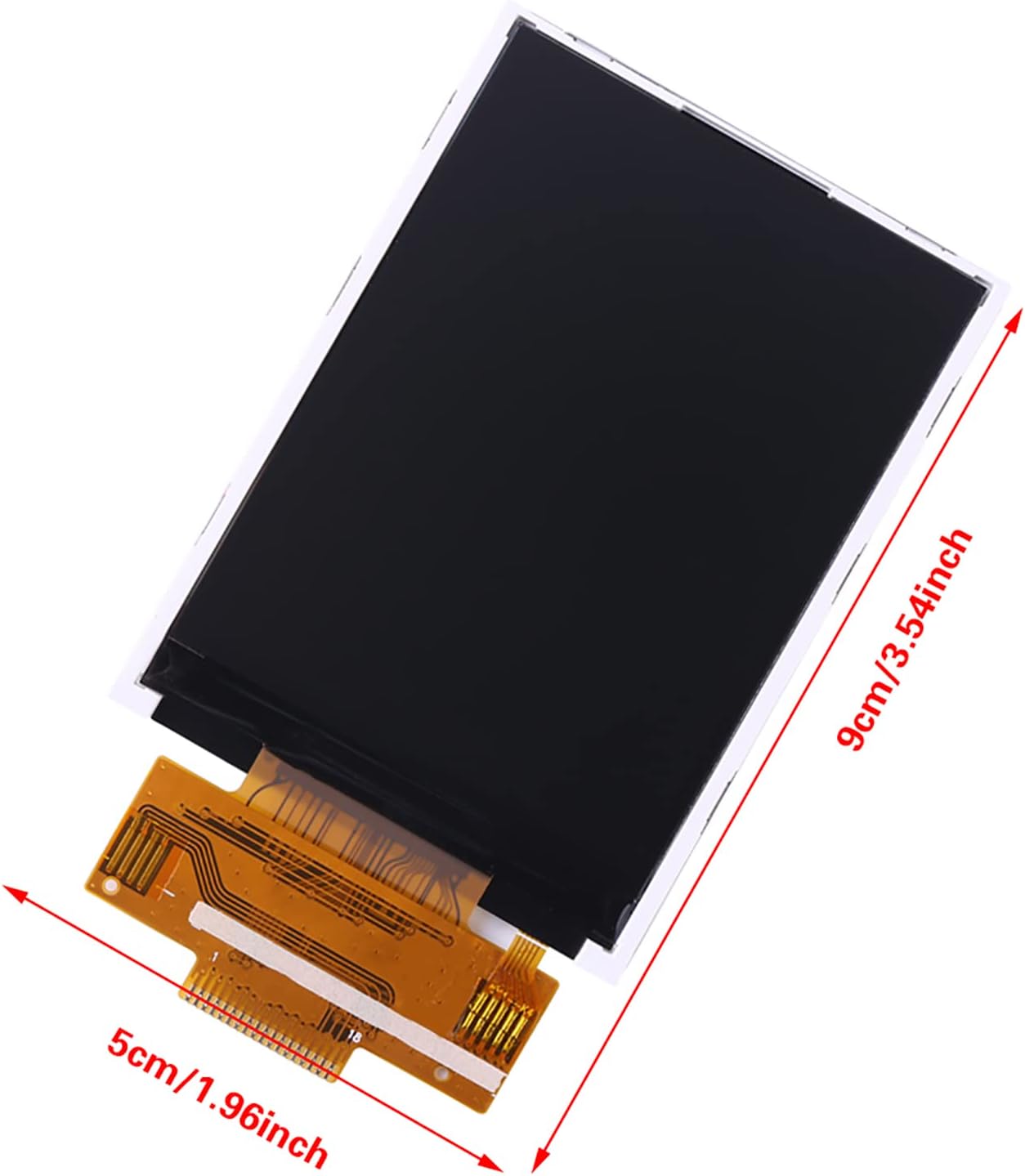

Yctze 2.8 Inch SPI Color LCD Display Module 240x320 ILI9341 for Embedded Systems - 4-Wire Interface

Specification: Material:LCD Screen Size: 2.8 inch Control chip: ILI9341 Resolution: 240*320 Display area: 43.20（W）*57.60（H） Interface type: 4-wire SPI interface Number of pins: 18pin Display color: 262K full color Working temperature: -20~70 degrees Pixel size: 0.18*0.18 (mm) Working voltage: 3.3V Display type: Weight:16g Structure: Interface: PIN No. Symbol Description 1 GND Ground 2 RESET LCM Reset pin Signal is active low. 3 SCL This pin is used serial interface clock in 4-wire 8-bit serial data interface. If not used, this pin should be connected to IOVCC or GND. 4 D/C -4-line system (D/CX): Serves as command or parameter select. Fix to IOVCC level when not in use. 5 CS Chip select pin ("Low" enable) 6 SDA Serial input signal. The data is applied on the rising of the SCL signal. If not used, fix this pin at IOVCC or GND 7 SDO Serial output signal. The data is outputted on the falling of the SCL signal. If not used, open this pin 8 Ground 9 VCC Power supply for LCM (2.8V-3.3V) 10 Anode of Backlight (3.0V-3.4V Typical:3.2V) 11 LEDK1 Cathode of Backlight 12 LEDK2 Cathode of Backlight 13 LEDK3 Cathode of Backlight 14 LUDK4 Cathode of Backlight 15 XL Touch panel control pin 16 YU Touch panel control pin 17 XR Touch panel control pin 18 YD Touch panel control pin Package Included: 1x LCD Display (without touch panel) Note: This model without touch panel

• High-Resolution Display: This 2.8-inch LCD module offers a striking resolution of 240x320 pixels, delivering and vibrant images. Whether you're designing an embedded system or creating a DIY project, this display ensures that your graphics and text are clear, making your user interface visually appealing. Experience an improved viewing experience with 262K full-color display capability that breathes life into your project.
• Easy Integration: The 4-wire SPI interface allows simple connectivity with various microcontroller platforms, including AVR and STM32. Featuring the ILI9341 driver chip, this display module supports straightforward communication, enabling developers to unleash their creativity without dealing with complex wiring. Its compatibility makes it ideal for hobbyists and engineers alike, simplifying your design process.
• Compact and Lightweight: Weighing only 16g, this 2.8-inch display module is designed for portability and space-saving applications. The compact size ensures that your projects can remain lightweight while still achieving aesthetic and functional value. Don't let bulky displays limit your design—this LCD is for handheld devices and compact embedded systems.
• Versatile Operating Conditions: This LCD module operates effectively within a wide temperature range of -20 to 70 degrees Celsius, making it suitable for various environments. Whether your project is intended for indoor or outdoor use, you can on this display to perform reliably in fluctuating conditions. This resilience ensures that your device will function as intended, regardless of atmospheric variables.
• Full Functional Pinout: The module features an 18-pin configuration, offering all necessary connections for effective operation, including power supply, backlight control, and chip select pins. This detailed pinout allows for efficient connectivity and ensures that you can quickly integrate this display into your existing projects. With labeled connections for easy reference, setting up this module is hassle-, paving the way for your innovative designs.
